液下渣浆泵

合金更耐用,不选清水泵。
  •

    液下渣浆泵

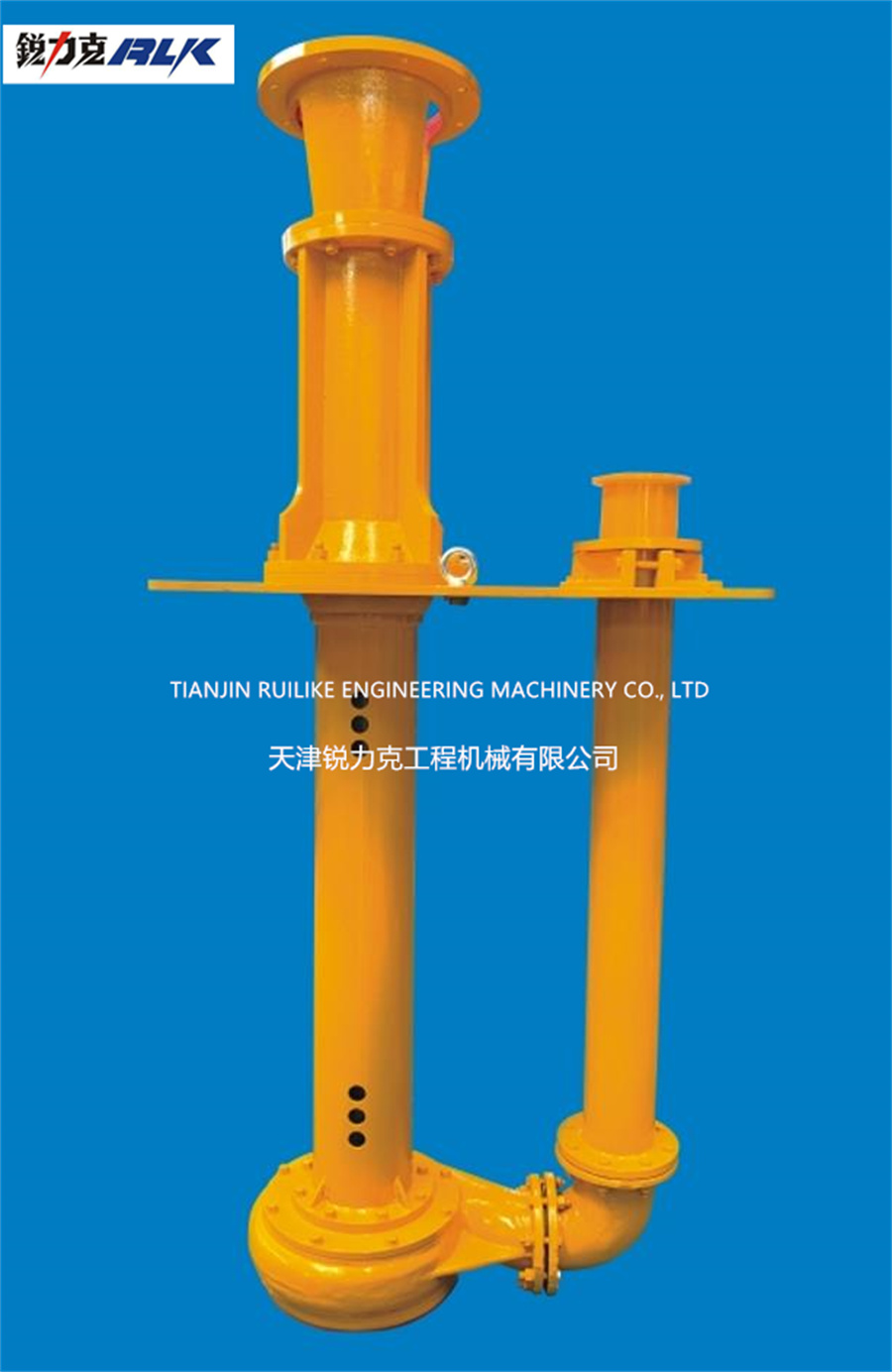

    液下渣浆泵是立式单级单吸悬臂结构离心泵。采用耐磨合金铸造而成,可以输送较大浓度固体颗粒的介质。因为叶轮和泵壳之间不设轴承,不采用轴封,所以免维护、耐高温,是为除砂器、除泥器和离心机提供动力的理想配套设备。

    The submersible slurry pump is a vertical single-stage single-suction centrifugal pump with a cantilever structure. It is made of wear-resistant alloy and can transport mud with heavy concentration of solid. Because there is no bearing between the impeller and the pump casing, and no shaft seal is used, it is maintenance-free and high-temperature resistant. It is an ideal supporting equipment for powering desanders, desilters, and centrifuges.





    液下渣浆泵型号参数表 Parameters

    型号

    流量

    扬程

    电机功率

    转速

    效率

    Model

    Flow Capacity

    Delivery Head

    Power

    Rotary Speed

    Efficiency

    RLK50YZ20-18

    20m3/h

    18m

    3Kw

    1450r/min

    42%

    RLK50YZ40-10

    20m3/h

    10.5m

    4Kw

    1450r/min

    47%

    RLK50Y50-12

    40m3/h

    10.8m

    5.5Kw

    1450r/min

    55%

    RLK80Y50-20

    60m3/h

    18m

    7.5Kw

    1450r/min

    48%

    RLK80YZ80-20B

    80m3/h

    13.4m

    7.5Kw

    1450r/min

    51%

    RLK80YZ80-20A

    90m3/h

    15m

    11Kw

    1450r/min

    51%

    RLK100YZ100-30A

    110m3/h

    24m

    18.5Kw

    1450r/min

    54%

    RLK100YZ100-30A

    100m3/h

    31m

    22Kw

    1450r/min

    54%

    RLK100YZ100-30A

    120m3/h

    28m

    22Kw

    1450r/min

    56%

    RLK100YZ160-38B

    164m3/h

    26m

    30Kw

    1450r/min

    50%

    RLK150YZ250-40B

    240m3/h

    24m

    37Kw

    1450r/min

    50%

    RLK150YZ250-40A

    270m3/h

    30m

    45Kw

    1450r/min

    51%
